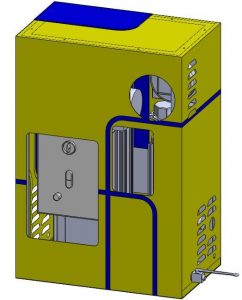

Mini Water Vac

The Mini Water Vac is a designated oil purification unit which can be applied directly to various types of machine reservoirs. It dehydrates and cleans most types of oil such as lubricating, hydraulic, transformer and switch oils. It is a self-regulating processing unit which removes particles, gas and water. The purified oil satisfies the most stringent quality requirements.

Simple Operation:                 Acr3732897168936-18219

The Mini Water Vac neither removes nor alters oil additives. The water removal process is based on pure vacuum evaporation inside a vacuum chamber at a maximum temperature of 65 °C. Solid particle removal is achieved through a well proven RMF Systems micro filter. It does not require continuous supervision whilst operating. Once the unit is connected properly and commissioned, oil purification is a semi automatic process. Desired oil temperature can be selected on the thermostat which is included in the integrated heater element of the dehydration unit. The only manual action is the emptying of pre-condenser bowl and waste water container, both equipped with a float switch to prevent overflow, which will shut down the dehydration unit once the maximum level is reached.

Water, gas, and particle removal:

Mini Water Vac removes liquid, gas, and solid contamination, which are corrosive and contribute to the reduction of machine life. Water, gas and solid particle contamination greatly increase maintenance cost and contribute to unwanted breakdowns or total machine failures. Mini Water Vac offers protection against mal- functions, breakdowns or total failures. The Mini Water Vac also protects the environment by reducing oil consumption and oil disposal along with it is inherent costs and problems.

Online Water Monitoring:

This offers the opportunity to prevent machine failures as well as to prolong maintenance and oil change intervals by means of appropriate measures. Furthermore, by monitoring the lubricant, correctly performed maintenance work and the use of the required lubricant quality may be documented. In order to also enable a long-term record of data up to half a year, the sensor has a data storage unit which can be read out over the serial interface.

Benefits you choosing Mini Water Vac:

  • Efficient water, gas, and particle removal
  • Extension of fluid service life
  • reduces fluid disposal
  • Minimises corrosion within systems
  • Reduces operating cost
  • Continuous determination of the oil condition
  • Water in leakage, oil change can be indicted.
